Mercury Magma

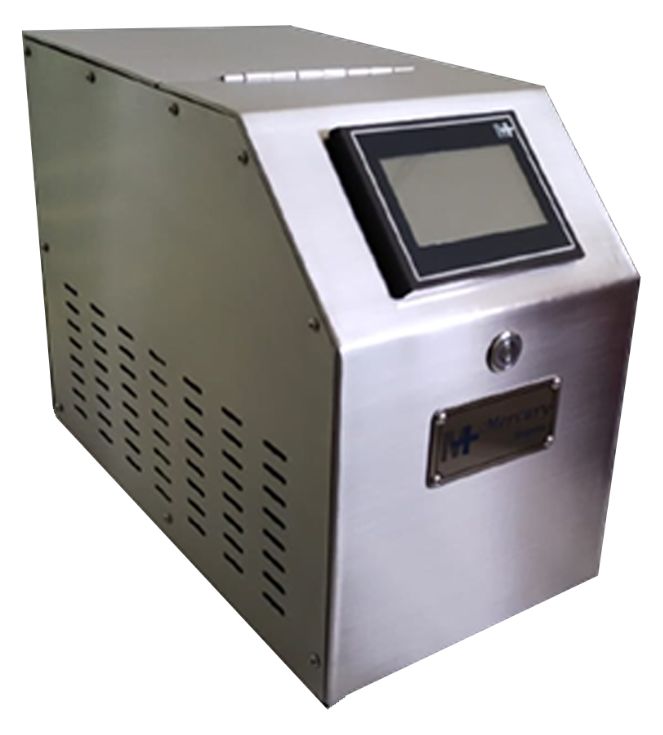

Mercury Magma
Mercury magma also known as Portable Heater Unit. Magma is used to maintain the fluid (Chemotherapy drugs) temperature through conductive heat transfer. The conductive heat transfer is accomplished through heat exchanger unit. The user regulates the desired fluid temperature with continuous monitoring.
Applications
he Mercury magma can be used for cancer surgeries like HIPEC (Hyperthermic Intra Peritoneal Chemotherapy) and CRS (Cyto-Reductive Surgery).
Features
- Fastest Heating in it’s Class: It has 5 Liter water tank with 1000 W heaters to achieve desired set point quickly.
- Graphical User Interface: Visual & easy to use graphical interface for water flow & temperature.
- Fully Touch Controller Display: All parameter can be controlled on finger touch.
- Robust Design: Robust design including PLCC based electronic to avoid periodic repairs.
- Single Output Circuit: it can be used to support one patient at a time.
Specifications
Dimensions:
- Height: 20” (50.8 cm)
- Depth: 13.5” (33 cm)
- Weight: 53 Lbs. (24kg)
Power Supply:
- Voltage: 220 VAC, 1 Phase
- Frequency: 50Hz
- Current: 6A
- Leakage Current: 500MA Max
Water Tank:
- Capacity: 5 Liter (1.32 Gal), Single tank
- Size: 16 x 19.7 x 18.7 CMS
- Temperature Range: 42-55°C (107-131°F)
Heaters:
- Heaters: 02 Numbers
- Heater wattage: 500 watt each
Output Ports:
- Patient 1: Quick Connect, 5 Ltr/min
