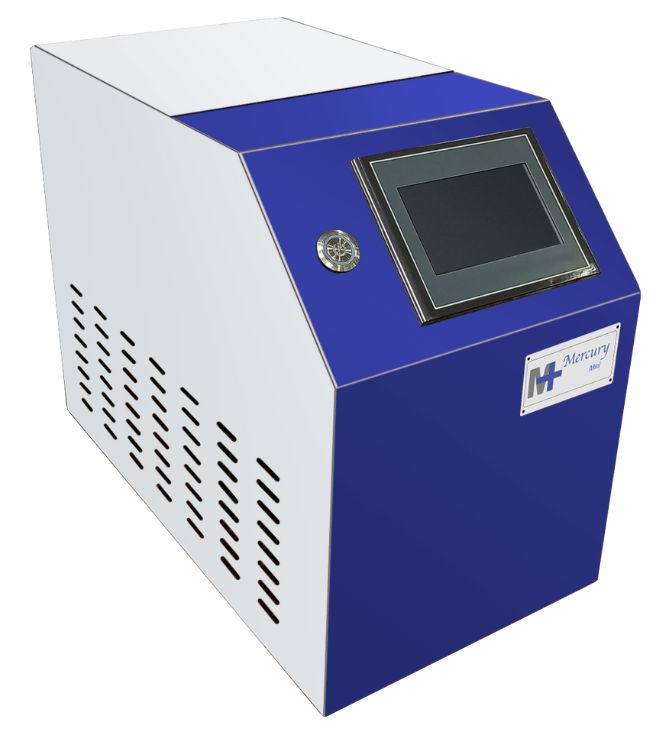

Mercury Mini
Mercury Mini
Mercury mini also known as Portable Heater-Cooler Unit. Mini is used to maintain the blood temperature through conductive heat transfer. The conductive heat transfer is accomplished through blood oxygenator/ heat exchanger unit, along with the use of a blanket under the patient for rewarming phase if desired. The user regulates the desired fluid temperature with continuous monitoring. The temperature can be lowered by adding ice in to the water tank if needed.
Applications
Mercury Mini can be used for surgeries such as Extracorporeal Membrane Oxygenation (ECMO) surgeries, maintaining patient temperature in the ICU, cancer surgeries, and neonatal & pediatric surgeries (e.g., newborn herniotomy, anoplasty, and orchiopexy).
Features
- Fastest Heating in it’s Class: It has 5 Liter water tank with 1000 W heaters to achieve desired set point quickly.
- Graphical User Interface: Visual & easy to use graphical interface for water flow & temperature.
- Fully Touch Controller Display: All parameter can be controlled on finger touch.
- Robust Design: Robust design including PLCC based electronic to avoid periodic repairs.
- Two Output Circuits: it can be used to support two patient simultaneously.
- Heater Off Mode: Incase of cold water circulation is needed “Heater Off” mode can be used and temperature can be lowered further by adding ice in a tank.
Specifications
Dimensions:
- Height: 20” (50.8 cm)
- Width: 9” (22.86 cm)
- Depth: 13.5” (33 cm)
- Weight: 53 Lbs. (24kg)
Power Supply:
- Voltage: 220 VAC, 1 Phase
- Frequency: 50Hz
- Current: 6A
- Leakage Current: 500mA max
Water Tank:
- Capacity: 5 Liter (1.32 Gal), Single tank
- Size: 16 x 19.7 x 18.7 CMs
- Temperature Range: 35-42°C (95-107°F)
Heaters:
- Heaters: 02 Numbers
- Heater wattage: 500 watt each
Output Ports:
- Patient 1: Quick Connect, 5 Ltr/min
- Patient 2: Quick Connect, 5 Ltr/min
