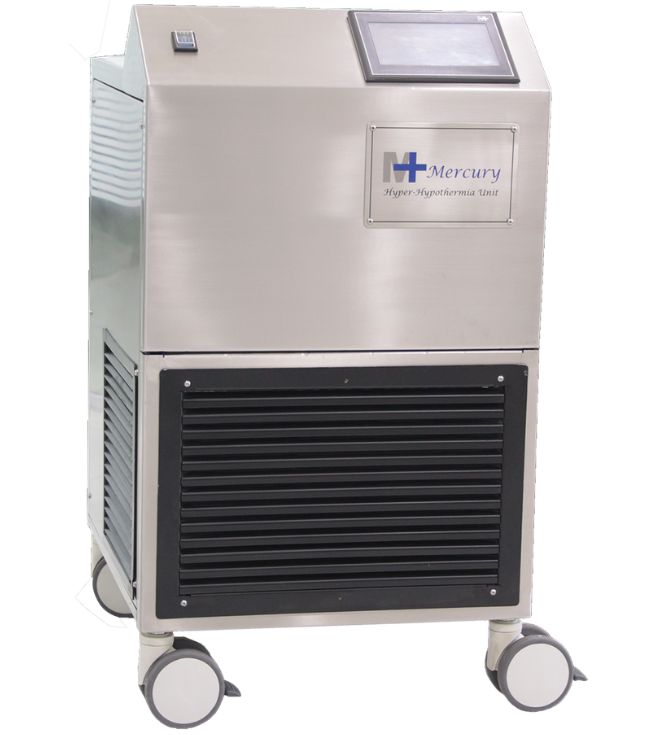

Hyper & Hypothermia Unit
Hyper & Hypothermia Unit
Mercury Hyper-Hypothermia machine also known as Heater-Cooler Machine, providing the functionality of maintaining the blood temperature of patient during the surgeries. HHU is used to lower/ raise/ maintain the blood temperature through conductive heat transfer with the help of oxygenator/heat exchanger, along with the use of a blanket under the patient for rewarming phase if needed. The user regulates the desired fluid temperature with continuous monitoring. Mercury also features a separate cardiopledgia circuit to maintain cardiopledgia temperature.
Applications
The Mercury Hyper-Hypothermia Unit can be used for surgeries like:
- Arterial/ventricular Septal Defects
- CABG (Coronary Artery Bypass Grafting)
- Heart valve replacement (MVR, AVR & PVR)
- Congenital Surgeries
- Hypothermic Surgeries
Features
- Fastest Heating & Cooling in its Class: It has separate cooling tank and heating chambers to achieve desired set point quickly.
- Graphical User Interface: Visual & easy to use graphical interface for water flow, heating & cooling temperature, water level indicator.
- Fully Touch Controller Display: All parameter can be controlled on finger touch.
- Diagnostic Mode: Introducing first ever diagnostic mode for troubleshooting remotely.
- Emergency Manual Mode: In case of emergency Manual mode with interactive colorful keys.
- Custom Configuration: HHU can be configurable according to customer's requirement.
- Auto-Cleaning Mode: Auto cleaning mode for descaling and disinfecting the unit.
- Independent Operation: Independent heating and cooling for Cardiopledgia and patient circuits.
Specifications
Dimensions
- Height: 35.1" (89.2 cm)
- Width: 20.7" (52.3 cm)
- Depth: 24.5" (62.2 cm)
- Weight: 247 lbs. (112kg)
Power Supply
- Voltage: 220 VAC, 1 Phase
- Frequency: 50Hz
- Current: 25A
- Leakage Current: 500mA max
Compressor
- Capacity: 1.5 Ton
Output Ports
- Patient/Oxygenator: Quick Connect, 10 Ltr/min
- Patient/Blanket: Quick Connect, 2 Ltr/min
- Cardioplegia: Quick Connect, 10 Ltr/min
Cooling Water Tank
- Capacity: 25 Liter (6.6 Gal), Single tank
- Size: 27 x 29.5 x 34.5 CMs
Heating Chamber
- Patient Chamber: 1 Liter
- Patient Heater Wattage: 2000 Watt
- Cardioplegia Chamber: 1 Liter
- Cardioplegia Heater Wattage: 1000 Watt
Auto Cleaning
- Maximum Temperature: 70°C (158°F)
- Cleaning & Disinfection Time: 3 Hrs.
Temperature Range
- Output Water Temp Range: 3-42°C (37-107°F)
